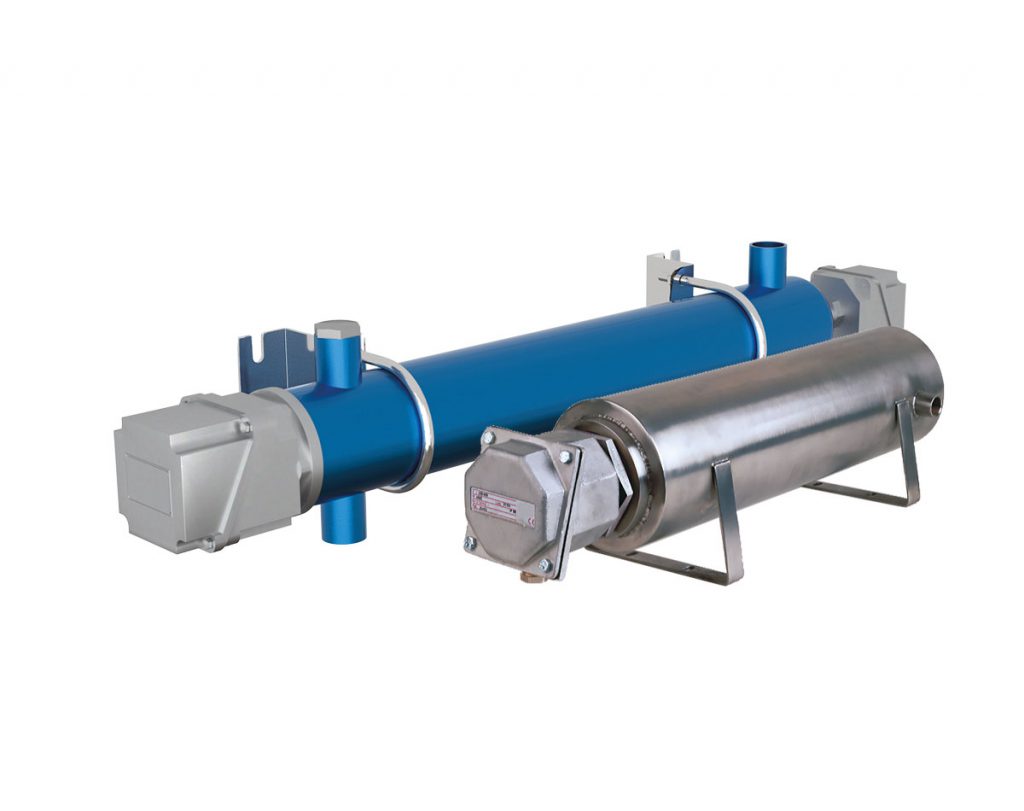

In-line heaters
RPM Model
Stainless steel AISI 316L heating element at 8 W/cm², 400 V 3PH
|
Ref. |
I/O distance |
Overall length L (mm) |
Inlet / outlet |
Power (W) |
|
RPM-030C8 |
350 |
610 |
1″ Gas |
3000 |
|
RPM-060C8 |
350 |
610 |
1″ Gas |
6000 |
|
RPM-090C8 |
600 |
860 |
1″ Gas |
9000 |
|
RPM-135C8 |
1100 |
1500 |
1″1/2 Gas |
13500 |
|
RPM-180C8 |
1100 |
1500 |
1″1/2 Gas |
18000 |
|
RPM-225C8 |
1100 |
1500 |
1″1/2 Gas |
22500 |
Stainless steel AISI 316L heating element at 4 W/cm², 400 V 3PH
|
Ref. |
I/O distance |
Overall length L (mm) |
Inlet / outlet |
Power (W) |
|
RPM-030C4 |
350 |
610 |
1″ Gas |
3000 |
|
RPM-045C4 |
600 |
860 |
1″ Gas |
4500 |
|
RPM-060C4 |
600 |
860 |
1″ Gas |
6000 |
|
RPM-075C4 |
1100 |
1500 |
1″1/2 Gas |
7500 |
|
RPM-090C4 |
1100 |
1500 |
1″1/2 Gas |
9000 |
|
RPM-120C4 |
1100 |
1500 |
1″1/2 Gas |
12000 |
Stainless steel AISI 316L heating element at 2.5 W/cm², 400 V 3PH
|
Ref. |
I/O distance |
Overall length L (mm) |
Inlet / outlet |
Power (W) |
|
RPM-030C2 |
600 |
860 |
1″ Gas |
3000 |
|
RPM-045C2 |
1100 |
1500 |
1″1/2 Gas |
4500 |
|
RPM-060C2 |
1100 |
1500 |
1″1/2 Gas |
6000 |
|
RPM-075C2 |
1100 |
1500 |
1″1/2 Gas |
7500 |
Model LH-AC ‑ LH-CN ‑ LH-II
Stainless steel heating elements AISI 321; design temperature up to 125°C
|
Ref. |
Power (W) |
W/cm² |
Thermostat range |
Inlet / outlet |
Dimensions (mm) |
|
|
A |
B |
|||||
|
LH-AC0010 |
1250 |
2.5 |
36 / 125 °C |
1″ Gas |
565 |
390 |
|
LH-AC0022 |
2250 |
2.5 |
36 / 125 °C |
1″ Gas |
665 |
490 |
|
LH-AC0030 |
3000 |
2.6 |
36 / 125 °C |
1″ Gas |
790 |
615 |
|
LH-AC0045 |
4500 |
2.5 |
36 / 125 °C |
1″ Gas |
1100 |
925 |
|
LH-AC0060 |
6000 |
2.5 |
36 / 125 °C |
1″ Gas |
1315 |
1140 |
|
LH-AC0090 |
9000 |
2.7 |
36 / 125 °C |
1″ Gas |
1715 |
1540 |
Nickel-plated copper tube heating elements; design temperature up to 90°C
|
Ref. |
Power (W) |
W/cm² |
Thermostat range |
Inlet / outlet |
Dimensions (mm) |
|
|
A |
B |
|||||
|
LH-CN0040 |
4000 |
8.7 |
30 / 85 °C |
1″ Gas |
565 |
390 |
|
LH-CN0060 |
6000 |
8.6 |
30 / 85 °C |
1″ Gas |
565 |
390 |
|
LH-CN0080 |
8000 |
8.6 |
30 / 85 °C |
1″ Gas |
665 |
490 |
|
LH-CN0100 |
10000 |
8.7 |
30 / 85 °C |
1″ Gas |
665 |
490 |
|
LH-CN0150 |
15000 |
8.1 |
0 / 90 °C |
1″ Gas |
1100 |
925 |
|
LH-CN0200 |
20000 |
8.2 |
0 / 90 °C |
1″ Gas |
1100 |
925 |
|
LH-CN0240 |
24000 |
8.1 |
0 / 90 °C |
1″ Gas |
1315 |
1140 |
|
LH-CN0350 |
35000 |
8.5 |
0 / 90 °C |
1″ Gas |
1715 |
1540 |
Stainless steel heating elements AISI 316L; design temperature up to 90°C
|
Ref. |
Power |
W/cm² |
Thermostat range |
Inlet / outlet |
Dimensions (mm) |
|
|
A |
B |
|||||
|
LH-II0030 |
3000 |
6.6 |
30 / 85 °C |
1″ Gas |
565 |
390 |
|
LH-II0045 |
4500 |
6.5 |
30 / 85 °C |
1″ Gas |
665 |
490 |
|
LH-II0060 |
6000 |
6.2 |
30 / 85 °C |
1″ Gas |
790 |
615 |
|
LH-II0090 |
9000 |
6.3 |
30 / 85 °C |
1″ Gas |
1100 |
925 |
|
LH-II0120 |
12000 |
6.4 |
0 / 90 °C |
1″ Gas |
1315 |
1140 |
