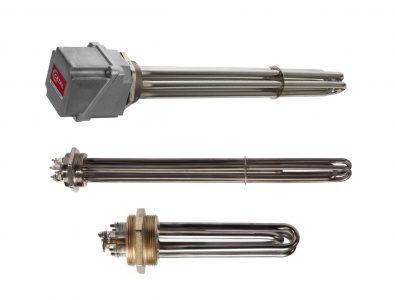

Screw plug immersion heaters
The screw plug immersion heaters consist of one, three or six heating elements which are assembled on a brass, steel or stainless steel plug.
Main uses: Heating of flowing or static fluid such as water, oils, thermal oil.
CETAL offers a standard range of screw plug immersion heaters.
Product overview
- Power from 250 W to 36 kW
- Designed for pressure up to 15 bars
- Brass plug
Advantages
- Large range for standard applications
- Short delivery time
- Benefit from CETAL’s 50 years of experience as designer and manufacturer!
Operating conditions
- Normal (non-ATEX)
- Pressure: 15 bars (Brazing) (PED)
- Vertical or horizontal mounting
Plug 1 inch ½ or M45 brass
Plug: 1″1/2 (ref 49BS) or M45 (ref 45BS), brass
Connecting box: aluminum IP55 95 x 95 x 80, no offset
Max. operating temperature: 110 °C
ø tube: 8.5 mm
Terminal: threaded M4 x 0.7
Cold length: 40 mm min.
Brazed, max pressure: 15 bars
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
250 |
2.5 |
130 |
230V 1PH |
TPV-xxBS-002C-C2B-XX |
|
316L |
333 |
2.5 |
160 |
230V 1PH |
TPV-xxBS-003C-C2B-XX |
|
316L |
500 |
2.5 |
225 |
230V 1PH |
TPV-xxBS-005C-C2B-XX |
|
316L |
666 |
2.5 |
280 |
230V 1PH |
TPV-xxBS-006C-C2B-XX |
|
316L |
1000 |
2.5 |
430 |
230V 1PH |
TPV-xxBS-010C-C2B-XX |
|
316L |
750 |
2.5 |
240 |
230/400V 3PH |
TPV-xxBS-007A-C2B-XX |
|
316L |
1000 |
2.5 |
305 |
230/400V 3PH |
TPV-xxBS-010A-C2B-XX |
|
316L |
1500 |
2.5 |
430 |
230/400V 3PH |
TPV-xxBS-015A-C2B-XX |
|
316L |
2000 |
2.5 |
555 |
230/400V 3PH |
TPV-xxBS-020A-C2B-XX |
|
316L |
3000 |
2.5 |
805 |
230/400V 3PH |
TPV-xxBS-030A-C2B-XX |
|
316L |
4000 |
2.5 |
1055 |
230/400V 3PH |
TPV-xxBS-040A-C2B-XX |
* Immersion length
** Plug reference: 1”1/2 (ref 49BS) or M45 (ref 45BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
333 |
4.5 |
125 |
230V 1PH |
TPV-xxBS-003C-C4B-XX |
|
316L |
500 |
4.5 |
150 |
230V 1PH |
TPV-xxBS-005C-C4B-XX |
|
316L |
666 |
4.5 |
185 |
230V 1PH |
TPV-xxBS-006C-C4B-XX |
|
316L |
1000 |
4.5 |
265 |
230V 1PH |
TPV-xxBS-010C-C4B-XX |
|
316L |
1500 |
4.5 |
370 |
230V 1PH |
TPV-xxBS-015C-C4B-XX |
|
316L |
2000 |
4.5 |
470 |
230V 1PH |
TPV-xxBS-020C-C4B-XX |
|
316L |
1000 |
4.5 |
195 |
230/400V 3PH |
TPV-xxBS-010A-C4B-XX |
|
316L |
1500 |
4.5 |
265 |
230/400V 3PH |
TPV-xxBS-015A-C4B-XX |
|
316L |
2000 |
4.5 |
330 |
230/400V 3PH |
TPV-xxBS-020A-C4B-XX |
|
316L |
3000 |
4.5 |
475 |
230/400V 3PH |
TPV-xxBS-030A-C4B-XX |
|
316L |
4500 |
4.5 |
680 |
230/400V 3PH |
TPV-xxBS-045A-C4B-XX |
|
316L |
6000 |
4.5 |
885 |
230/400V 3PH |
TPV-xxBS-060A-C4B-XX |
* Immersion length
** Plug reference: 1”1/2 (ref 49BS) or M45 (ref 45BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
2200 |
8 |
240 |
400V 3PH |
TPV-xxBS-022B-C8B-XX |
|
316L |
3000 |
8 |
305 |
400V 3PH |
TPV-xxBS-030B-C8B-XX |
|
316L |
4500 |
8 |
430 |
400V 3PH |
TPV-xxBS-045B-C8B-XX |
|
316L |
6000 |
8 |
555 |
400V 3PH |
TPV-xxBS-060B-C8B-XX |
|
316L |
9000 |
8 |
805 |
400V 3PH |
TPV-xxBS-090B-C8B-XX |
|
316L |
12000 |
8 |
1055 |
400V 3PH |
TPV-xxBS-120B-C8B-XX |
* Immersion length
** Plug reference: 1”1/2 (ref 49BS) or M45 (ref 45BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
Incoloy 800 |
1000 |
10 |
150 |
230V 1PH |
TPV-xxBS-010C-ZAB-XX |
|
Incoloy 800 |
1500 |
10 |
180 |
230V 1PH |
TPV-xxBS-015C-ZAB-XX |
|
Incoloy 800 |
2000 |
10 |
230 |
230V 1PH |
TPV-xxBS-020C-ZAB-XX |
|
Incoloy 800 |
2500 |
10 |
280 |
230V 1PH |
TPV-xxBS-025C-ZAB-XX |
|
Incoloy 800 |
3000 |
10 |
330 |
230V 1PH |
TPV-xxBS-030A-ZAB-XX |
|
Incoloy 800 |
1500 |
10 |
170 |
230/400V 3PH |
TPV-xxBS-015A-ZAB-XX |
|
Incoloy 800 |
2000 |
10 |
200 |
230/400V 3PH |
TPV-xxBS-020A-ZAB-XX |
|
Incoloy 800 |
3000 |
10 |
260 |
230/400V 3PH |
TPV-xxBS-030A-ZAB-XX |
|
Incoloy 800 |
4500 |
10 |
335 |
230/400V 3PH |
TPV-xxBS-045A-ZAB-XX |
|
Incoloy 800 |
6000 |
10 |
430 |
230/400V 3PH |
TPV-xxBS-060A-ZAB-XX |
|
Incoloy 800 |
7500 |
10 |
525 |
230/400V 3PH |
TPV-xxBS-075A-ZAB-XX |
|
Incoloy 800 |
9000 |
10 |
615 |
230/400V 3PH |
TPV-xxBS-090A-ZAB-XX |
|
Incoloy 800 |
12000 |
10 |
805 |
230/400V 3PH |
TPV-xxBS-120A-ZAB-XX |
* Immersion length
** Plug reference: 1”1/2 (ref 49BS) or M45 (ref 45BS)
|
Plug material |
Brass (stainless steel on request) |
||||||
|
Box |
Without |
C MENZ |
ORPM |
ORGM |
|||
|
Temperature control |
Without |
Without |
Without |
0/40 1ph int |
30/90 1ph int |
0/40 3ph int |
30/85 3ph int |
|
Option name |
XX |
3X |
1X |
1A |
1B |
2E |
2F |
- Seal and fastening nut kit for threading: 1″1/2, M45
- Welding ring: 1″1/2, M45
- If a thermostat is needed and the immersion length is shorter than 250 mm, please contact us to check the technical feasibility
Plug 2 inch ½ or M77 brass
Plug: 2″1/2 (ref 76BS) or M77 (ref 77BS), brass
Connecting box: aluminum IP55 110 x 110 x 105, no offset
Max. operating temperature: 110 °C
ø tube: 16 mm
Terminal: threaded M6 x 1
Cold length: 70 mm min.
Brazed, max pressure: 15 bars
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
1000 |
2.5 |
265 |
230V 1PH |
TPV-xxBS-010C-C2E-XX |
|
316L |
1500 |
2.5 |
380 |
230V 1PH |
TPV-xxBS-015C-C2E-XX |
|
316L |
2000 |
2.5 |
480 |
230V 1PH |
TPV-xxBS-020C-C2E-XX |
|
316L |
2500 |
2.5 |
580 |
230V 1PH |
TPV-xxBS-025C-C2E-XX |
|
316L |
3000 |
2.5 |
680 |
230V 1PH |
TPV-xxBS-030C-C2E-XX |
|
316L |
3000 |
2.5 |
480 |
230/400V 3PH |
TPV-xxBS-030A-C2E-XX |
|
316L |
4500 |
2.5 |
675 |
230/400V 3PH |
TPV-xxBS-045A-C2E-XX |
|
316L |
6000 |
2.5 |
875 |
230/400V 3PH |
TPV-xxBS-060A-C2E-XX |
|
316L |
7500 |
2.5 |
1075 |
230/400V 3PH |
TPV-xxBS-075A-C2E-XX |
|
316L |
9000 |
2.5 |
1275 |
230/400V 3PH |
TPV-xxBS-090A-C2E-XX |
|
316L |
12000 |
2.5 |
1670 |
230/400V 3PH |
TPV-xxBS-120A-C2E-XX |
* Immersion length
** Plug reference: 2″1/2 (ref 76BS) or M77 (ref 77BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
1000 |
4 |
190 |
230V 1PH |
TPV-xxBS-010C-C4E-XX |
|
316L |
1500 |
4 |
255 |
230V 1PH |
TPV-xxBS-015C-C4E-XX |
|
316L |
2000 |
4 |
330 |
230V 1PH |
TPV-xxBS-020C-C4E-XX |
|
316L |
2500 |
4 |
390 |
230V 1PH |
TPV-xxBS-025C-C4E-XX |
|
316L |
3000 |
4 |
455 |
230V 1PH |
TPV-xxBS-030C-C4E-XX |
|
316L |
3000 |
4 |
330 |
230/400V 3PH |
TPV-xxBS-030A-C4E-XX |
|
316L |
4500 |
4 |
455 |
230/400V 3PH |
TPV-xxBS-045A-C4E-XX |
|
316L |
6000 |
4 |
575 |
230/400V 3PH |
TPV-xxBS-060A-C4E-XX |
|
316L |
7500 |
4 |
700 |
230/400V 3PH |
TPV-xxBS-075A-C4E-XX |
|
316L |
9000 |
4 |
825 |
230/400V 3PH |
TPV-xxBS-090A-C4E-XX |
|
316L |
12000 |
4 |
1075 |
230/400V 3PH |
TPV-xxBS-120A-C4E-XX |
|
316L |
15000 |
4 |
1325 |
230/400V 3PH |
TPV-xxBS-150A-C4E-XX |
* Immersion length
** Plug reference: 2″1/2 (ref 76BS) or M77 (ref 77BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
316L |
4500 |
8 |
265 |
230/400V 3PH |
TPV-xxBS-045A-C8E-XX |
|
316L |
6000 |
8 |
330 |
230/400V 3PH |
TPV-xxBS-060A-C8E-XX |
|
316L |
9000 |
8 |
480 |
400V 3PH |
TPV-xxBS-090B-C8E-XX |
|
316L |
13500 |
8 |
675 |
400V 3PH |
TPV-xxBS-135B-C8E-XX |
|
316L |
18000 |
8 |
875 |
400V 3PH |
TPV-xxBS-180B-C8E-XX |
|
316L |
22500 |
8 |
1075 |
400V 3PH |
TPV-xxBS-225B-C8E-XX |
|
316L |
27000 |
8 |
1275 |
400V 3PH |
TPV-xxBS-270B-C8E-XX |
|
316L |
36000 |
8 |
1675 |
400V 3PH |
TPV-xxBS-360B-C8E-XX |
* Immersion length
** Plug reference: 2″1/2 (ref 76BS) or M77 (ref 77BS)
|
Material |
Power |
Watt dens. |
Max. IL* |
Voltage |
Reference** |
|
Incoloy 800 |
1500 |
8 |
150 |
230V 1PH |
TPV-xxBS-015C-Z8E-XX |
|
Incoloy 800 |
2000 |
8 |
185 |
230V 1PH |
TPV-xxBS-020C-Z8E-XX |
|
Incoloy 800 |
2500 |
8 |
220 |
230V 1PH |
TPV-xxBS-025C-Z8E-XX |
|
Incoloy 800 |
3000 |
8 |
250 |
230V 1PH |
TPV-xxBS-030C-Z8E-XX |
|
Incoloy 800 |
4500 |
8 |
265 |
230/400V 3PH |
TPV-xxBS-045A-Z8E-XX |
|
Incoloy 800 |
6000 |
8 |
330 |
230/400V 3PH |
TPV-xxBS-060A-Z8E-XX |
|
Incoloy 800 |
7500 |
8 |
390 |
230/400V 3PH |
TPV-xxBS-075A-Z8E-XX |
|
Incoloy 800 |
9000 |
8 |
455 |
230/400V 3PH |
TPV-xxBS-090A-Z8E-XX |
|
Incoloy 800 |
10000 |
8 |
495 |
230/400V 3PH |
TPV-xxBS-100A-Z8E-XX |
|
Incoloy 800 |
12000 |
8 |
575 |
230/400V 3PH |
TPV-xxBS-120A-Z8E-XX |
|
Incoloy 800 |
15000 |
8 |
700 |
230/400V 3PH |
TPV-xxBS-150A-Z8E-XX |
|
Incoloy 800 |
18000 |
8 |
825 |
230/400V 3PH |
TPV-xxBS-180A-Z8E-XX |
|
Incoloy 800 |
9000 |
12 |
330 |
400V 3PH |
TPV-xxBS-090B-ZCE-XX |
|
Incoloy 800 |
12000 |
12 |
410 |
400V 3PH |
TPV-xxBS-120B-ZCE-XX |
|
Incoloy 800 |
15000 |
12 |
495 |
400V 3PH |
TPV-xxBS-150B-ZCE-XX |
|
Incoloy 800 |
18000 |
12 |
575 |
400V 3PH |
TPV-xxBS-180B-ZCE-XX |
|
Incoloy 800 |
20000 |
12 |
630 |
400V 3PH |
TPV-xxBS-200B-ZCE-XX |
|
Incoloy 800 |
24000 |
12 |
745 |
400V 3PH |
TPV-xxBS-240B-ZCE-XX |
|
Incoloy 800 |
30000 |
12 |
910 |
400V 3PH |
TPV-xxBS-300B-ZCE-XX |
|
Incoloy 800 |
36000 |
12 |
1045 |
400V 3PH |
TPV-xxBS-360B-ZCE-XX |
* Immersion length
** Plug reference: 2″1/2 (ref 76BS) or M77 (ref 77BS)
|
Plug material |
Brass (stainless steel on request) |
|||||
|
Box |
Without |
ORGM |
||||
|
Temperature control |
Without |
Without |
0/40 1ph int |
30/90 1ph int |
0/40 3ph int |
30/85 3ph int |
|
Option name |
XX |
2X |
2A |
2B |
2E |
2F |
- Seal and fastening nut kit for threading: 2″1/2, M77
- Welding ring: 2″1/2, M77
- If a thermostat is needed and the immersion length is shorter than 250 mm, please contact us to check the technical feasibility
